Phase Diagrams & Computational Thermodynamics

Phase Diagram Logo

Ag-Bi System

Calculated Phase Diagram

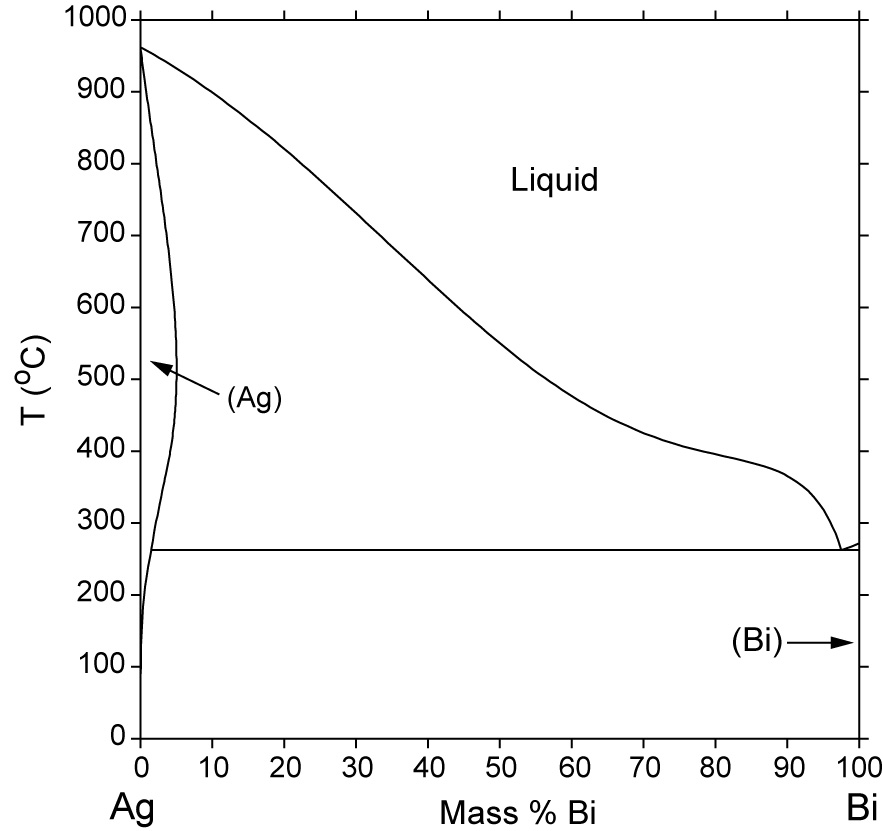

Calculated Ag-Bi Phase Diagram (percent of mass fraction) (82 KB)

Status of the thermodynamic description:

U.R. Kattner and W.J. Boettinger, J. Electron. Mater. 23 (1994) 603-610:
Full thermodynamic assessment.

Additional Assessments:

B. Zimmermann, E.-Th. Henig and H.L. Lukas, Z.Metallkde. 67 (1976) 815-820
I. Karakaya and W.T. Thompson, J. Phase Equilibria 14 (1993) 525-530

Calculated Invariant Equilibria

Reaction Phase Mass % Ag Mass % Bi
L   ->   (Ag)   +   (Bi)

262.5 oC

 Liquid 2.50 97.50
(Ag) 98.46 1.54
(Bi) 0 100

Phases, Crystal Structures and Model Descriptions

Phase Struktur-
bericht
Symbol		 Common Names Prototype Spacegroup Model*

Liquid n/a L n/a n/a (Ag,Bi)1

Fcc A1 (Ag) Cu Fm-3m (Ag,Bi)1(Va)1
Rho A7 (Bi) alpha As R-3m (Bi)1

*Major species are printed bold face
